How to assemble CuboAi Monitor 3?

💡Note:

1. For a smooth setup experience, please download the CuboAi App and create an account before assembling the stand or connecting CuboAi Monitor 3 to a power source.

2. The method to identify the CuboAi Monitor 3 is as follows: The status light is a circular strip.

3. Please refer to the Quick Start Guide - 3 Stand Set or Quick Start Guide - Wall Mount Set for instructions on how to assemble.

(Before connecting the power, please ensure that the temperature and humidity sensor is placed inside the mounting bracket to ensure proper functioning of the temperature and humidity detection feature!)

• Crib Mount
• Floor Stand
• Mobile Stand
• Wall Mount

• Crib Mount: It is designed to attach to the spindles of Baby's crib.

1. An additional bedside mounting accessory kit needs to be purchased. Must be used with U-shaped, L-shaped, and elongated brackets (The assembled stand height is ~ 4'5" / 134cm).

2. Suitable for "rail-type" cribs (rail gaps must be smaller than 7 cm): It is recommended to install the crib clamp bracket under the bed frame/at the bottom of the rails. The crib clamp uses a material similar to sponge or yoga mats, allowing it to adapt to rails of different shapes, as long as the gap does not exceed 7 cm.

3. Crib clamp length: Approximately 18 cm. The clamp's position can be adjusted to fine-tune the camera's height, saving installation space. It can also move along with the crib, making it very convenient!

4. For baby safety, the power cord is embedded inside the crib bracket pole. Therefore, a 3-meter power cord is recommended.

5. Please refer to the following link: CuboAi Smart Baby Monitor 3 | Crib Mount Setup.

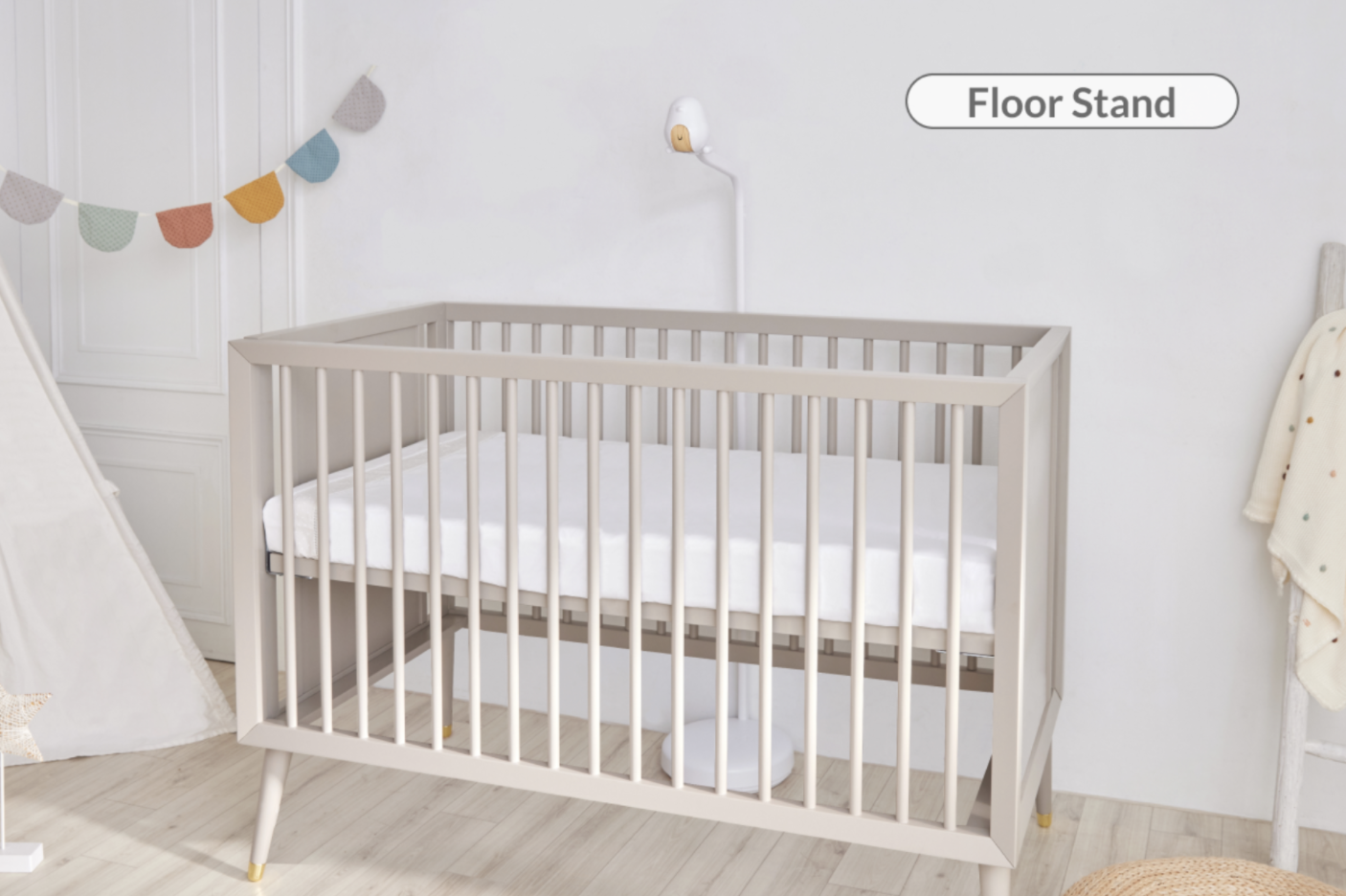

• Floor Stand: It is designed to freely move around as needed.

1. The Floor Stand needs to be used with the U-Shaped Camera Holder, L-Shaped Stand Element, Stand Elements & Connectors. (The assembled stand height is ~ 4'5" / 134cm)

2. Once assembled, Please slide the entire base of the floor stand under the crib (as pictured below) to maintain the balance and stability of the stand.

3. The Floor Base Height is 2” / 5cm, Diameter is 11.4” / 29cm

4. For baby safety, the power cord is embedded inside the crib bracket pole. Therefore, a 3-meter power cord is recommended.

5. Please refer to the following link: CuboAi Smart Baby Monitor 3 | Floor Stand Setup

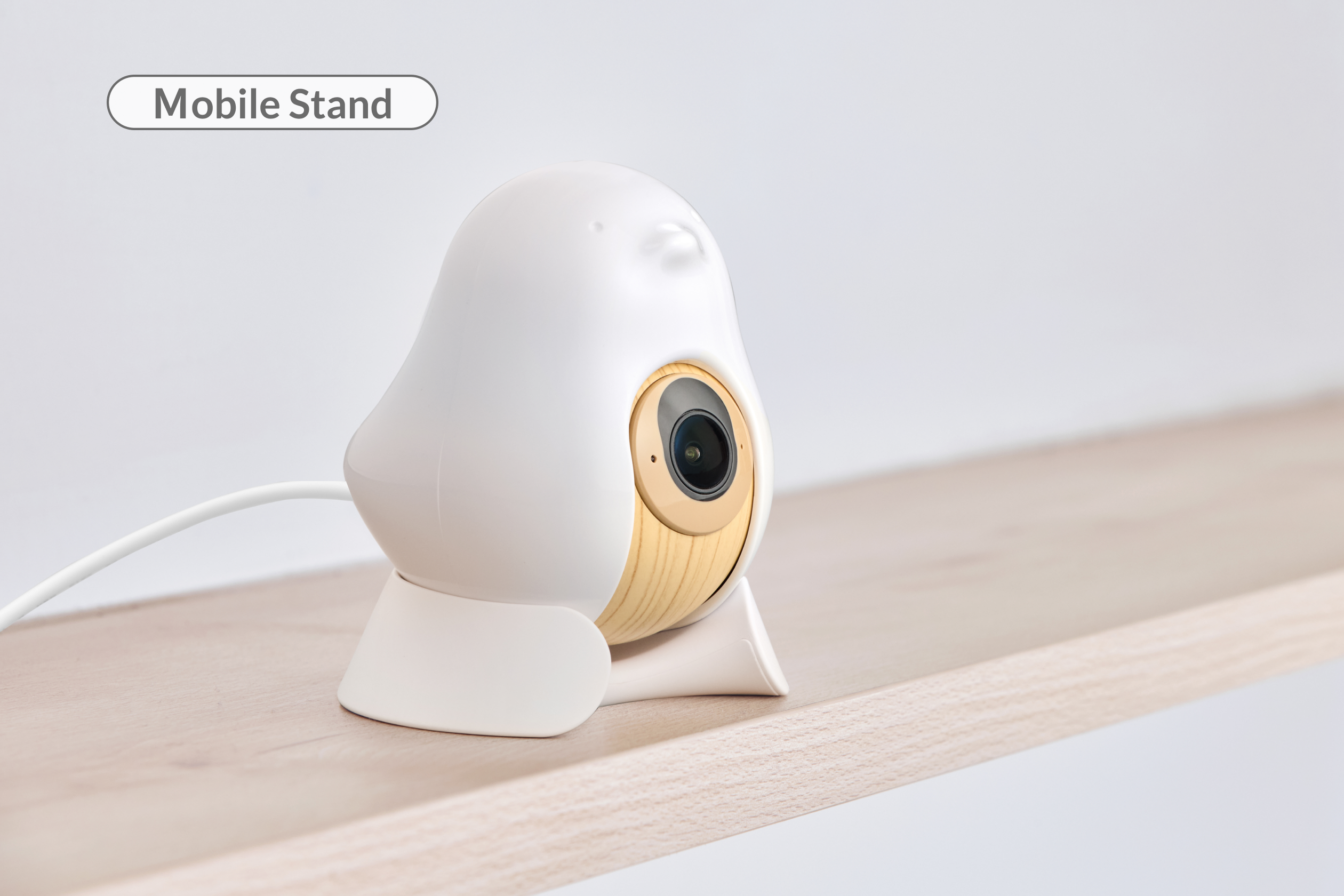

• Mobile Stand: It is designed for when you're on the go, whether you’re traveling or just want to set up in a different room of the house.

1. A "mobile stand" is recommended to be used with a 2-meter power cord!

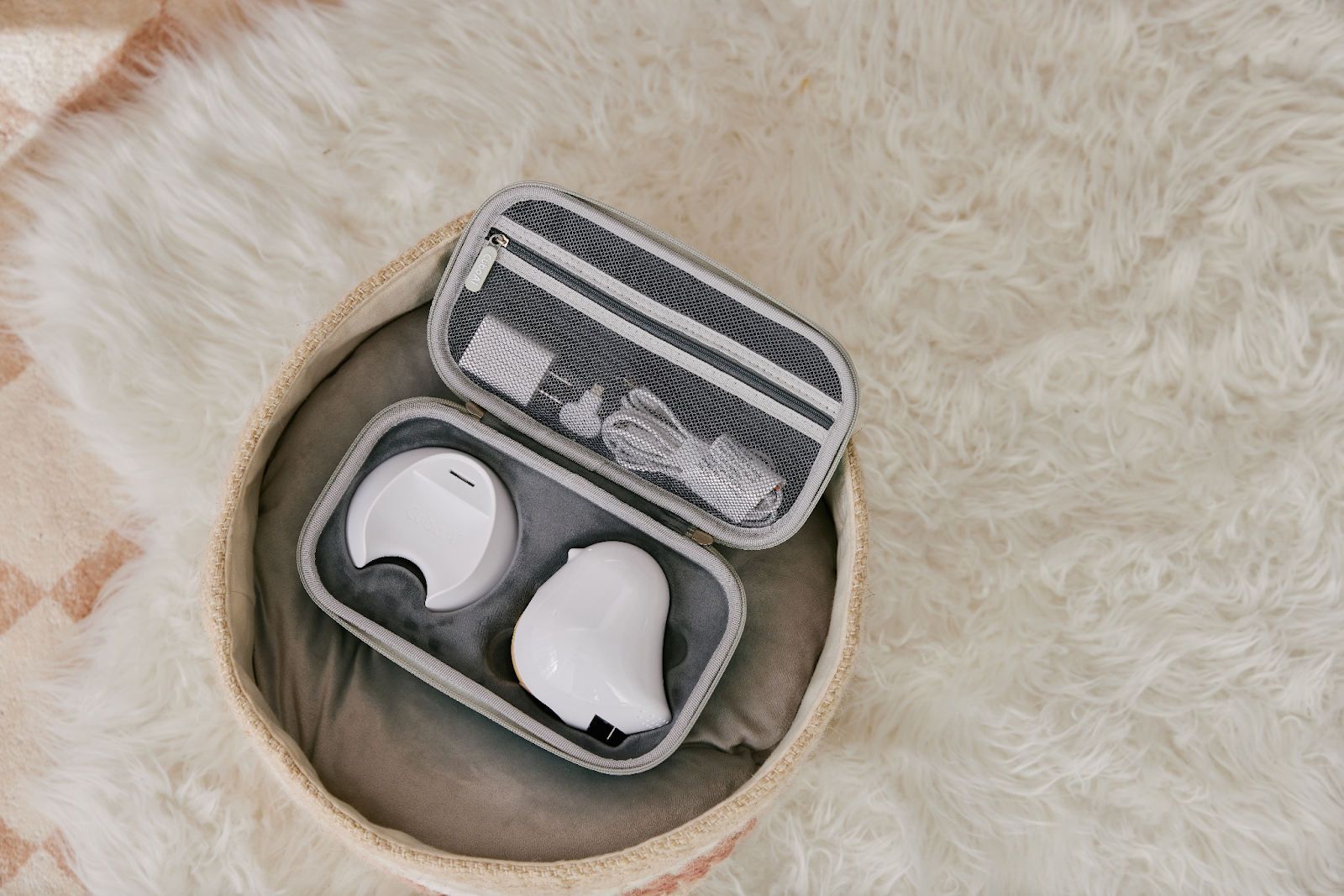

2. You can bring our CuboAi Travel Case to go traveling.

3. Please refer to the following link: CuboAi Smart Baby Monitor 3 | Mobile Stand Setup .

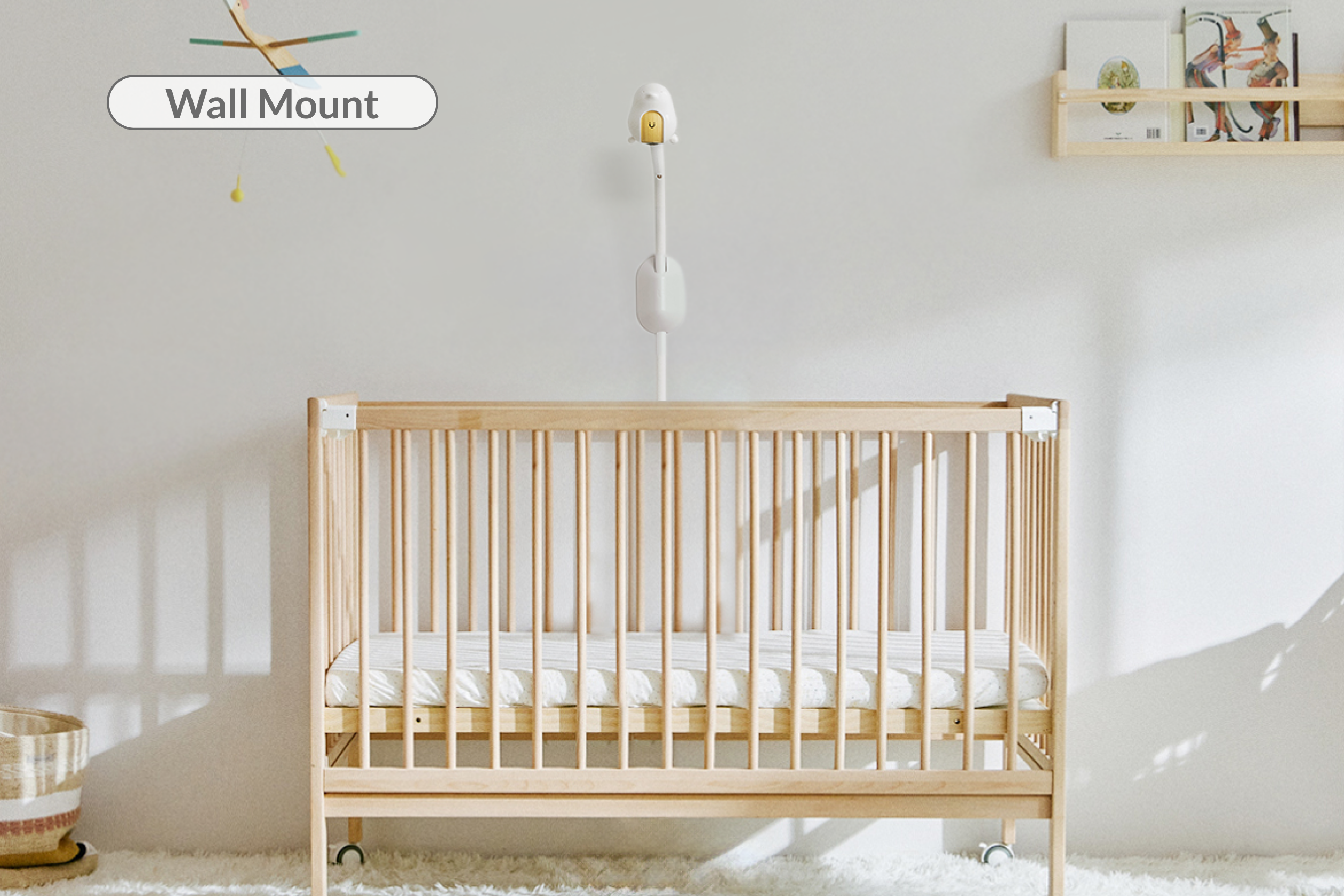

• Wall Mount: It is suitable for mounting on cement, wooden, hollow, or dry walls.

1. You will be required to drill a hole in the wall.
2. Tools required: electric drill and 5.5mm (7/32") drill bit, Phillips screwdriver, mallet (optional).
3. The total assembled length is approximately 145 cm and can be mounted on the wall, saving space.

4. Please refer to the following link: CuboAi Smart Baby Monitor 3 | Wall Mount Setup .

🐦 Reminder:

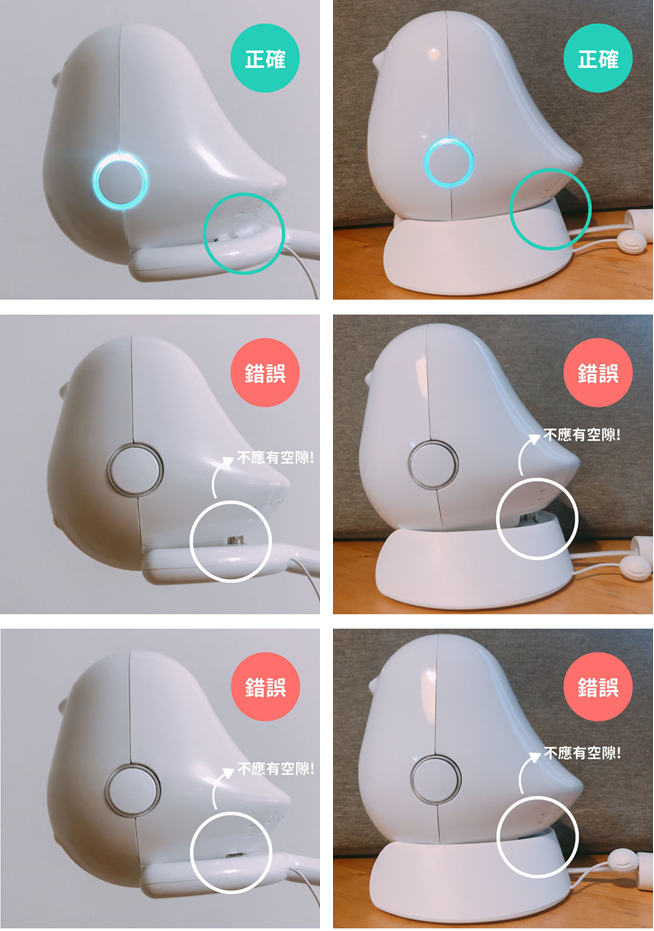

There should be no gap between CuboAi and the U-shaped Camera Holder/Mobile Dock when it’s properly attached.

If there is a gap between your baby monitor and the stand, CuboAi will not be able to function regularly. Please make sure you hear a click after putting on the baby monitor to ensure stable connection and device security.

Examples:
