How to assemble CuboAi Plus?

💡Note:

1. For a smooth setup experience, please download the CuboAi App and create an account before assembling the stand or connecting CuboAi Plus to a power source.

2. CuboAi Plus's multi-purpose button is located on the back of the baby monitor.

3. Please refer to the Quick Start Guide - 3 Stand Set or Quick Start Guide - Wall Mount Set for instructions on how to assemble.

(Before connecting the power, please ensure that the dongle is tightly connected to the end of the CuboAi Plus to ensure the normal operation of the temperature and humidity detection function!)

• Crib Mount
• Floor Stand
• Mobile Stand
• Wall Mount

• Crib Mount (to be used with 3m cable): It is designed to attach to the spindles of Baby's crib.

1. The Crib Mount needs to be used with the U-Shaped Camera Holder, L-Shaped Stand Element, Stand Elements & Connectors.

2. The Crib Mount can only be used between spindles that are at most 2.7” / 7 cm apart. Made out of a material similar in texture to a yoga mat, the clamping bed attachment slides in between two spindles of a crib, enabling the stand to fit snugly into many different-sized cribs.

3. It is recommended to install the crib attachment under the bed board/bottom of the railing)

4. Crib Mount Height: 7.1" / 18cm: The CuboAi Plus' height can be adjusted by changing the position of the bed clamp. This saves space and can be transported with the crib for convenience.

5. Please refer to Setting up your CuboAi Plus: Crib Mount to assemble the stand.

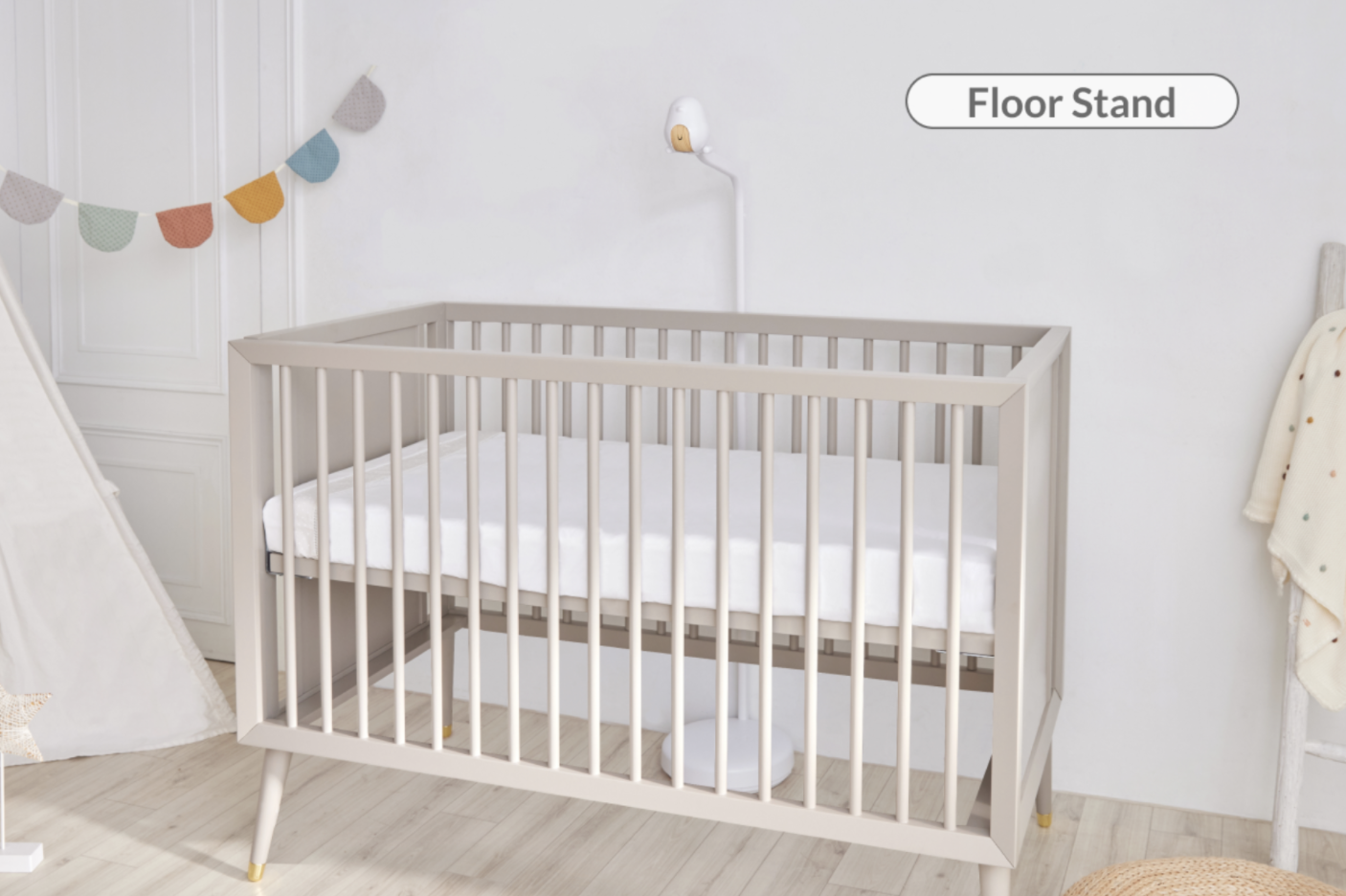

• Floor Stand (to be used with 3m cable): It is designed to freely move around as needed.

1. The Floor Stand needs to be used with the U-Shaped Camera Holder, L-Shaped Stand Element, Stand Elements & Connectors. (The assembled stand height is ~ 4'5" / 135cm)

2. Once assembled, Please slide the entire base of the floor stand under the crib (as pictured below) to maintain the balance and stability of the stand.

3. The Floor Base Height is 2” / 5cm, Diameter is 11.4” / 29cm

4. Please refer to Setting up your CuboAi Plus: Floor Stand to assemble the stand.

• Mobile Stand(to be used with 2m cable): It is designed for when you're on the go, whether you’re traveling or just want to set up in a different room of the house.

1. It is a small docking station for CuboAi Plus attached to a ~7 ft. (200cm) long cord.

2. You can bring our CuboAi Travel Case to go traveling.

3. Please refer to Setting up your CuboAi Plus: Mobile Stand to assemble the stand.

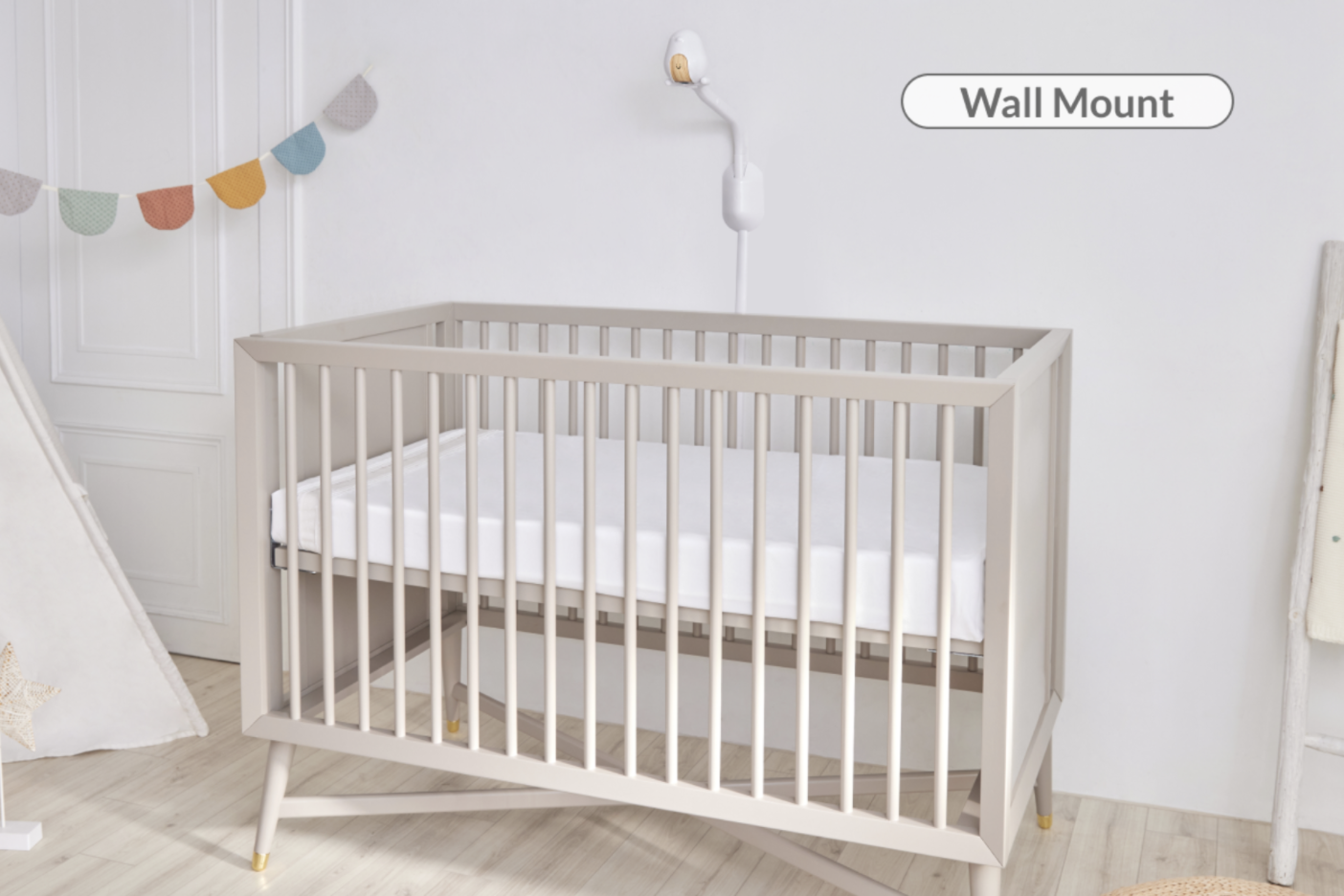

• Wall Mount(to be used with 3m cable): It is suitable for mounting on cement, wooden, hollow, or dry walls.

1. You will be required to drill a hole in the wall.
2. Tools required: electric drill and 5.5mm (7/32") drill bit, Phillips screwdriver, mallet (optional).
3. The wall mount option allows the CuboAi Plus to be mounted directly onto the wall, which helps to save space.

4. Please refer to Setting up your CuboAi Plus: Wall Mount to assemble the stand.

🐦 Reminder:

There should be no gap between CuboAi and the U-shaped Camera Holder/Mobile Dock when it’s properly attached.

If there is a gap between your baby monitor and the stand, CuboAi will not be able to function regularly. Please make sure you hear a click after putting on the baby monitor to ensure stable connection and device security.

Examples:
